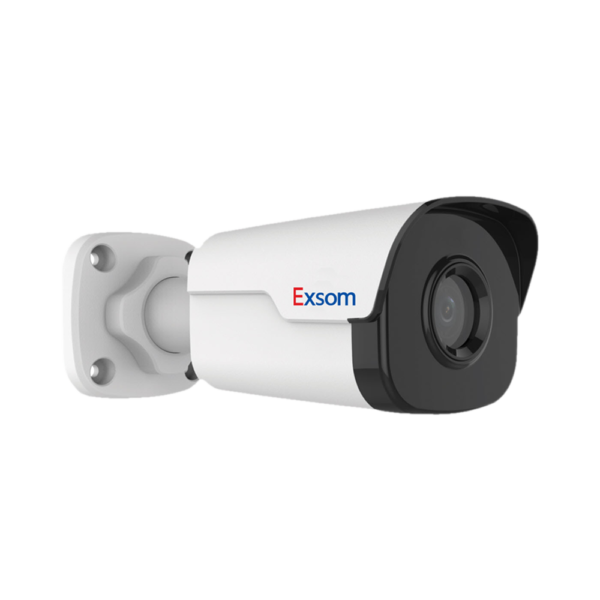

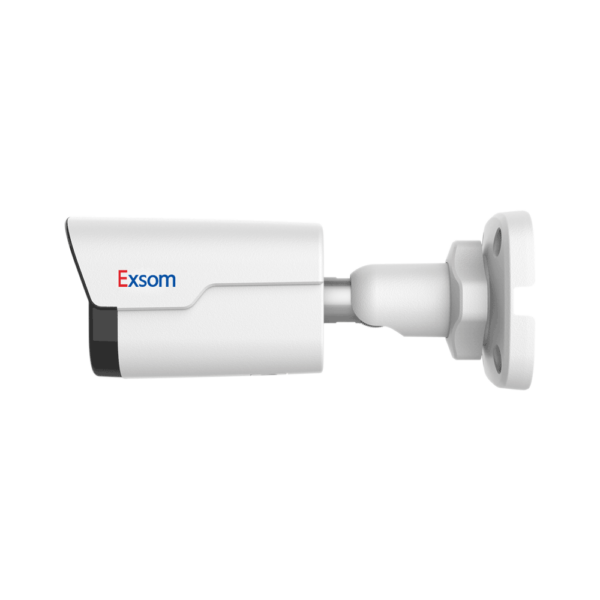

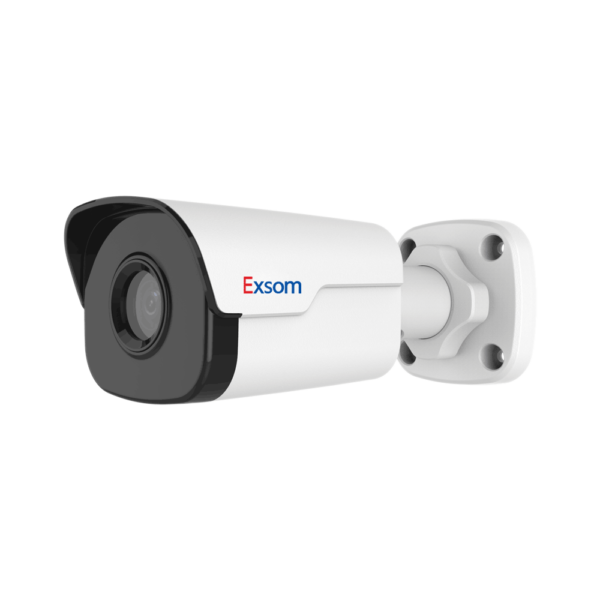

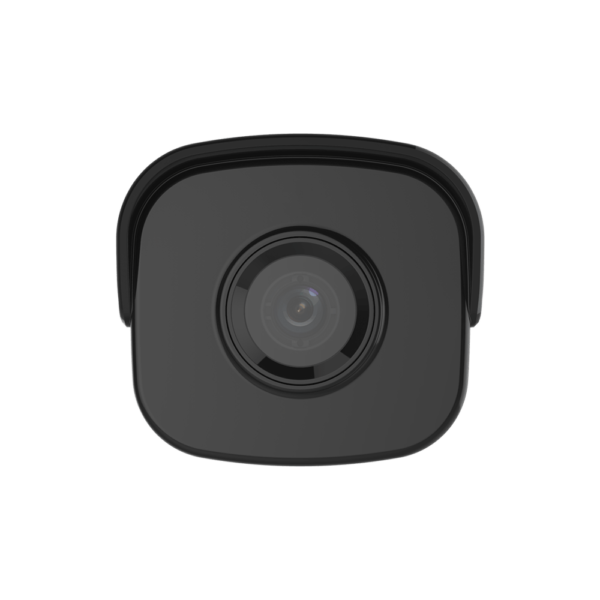

دوربین مداربسته اکسوم مدل EIPC-B112

1/2.7", 2.0 megapixel, progressive scan, CMOS

4.0-6.0mm@F1.6

91.2° — 56.4°

Auto / Manual, 100000/1~6/1 s

Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on

IR-cut filter with auto switch (ICR)

2D/3D DNR

>52dB

30m- Smart IR

Digital Defog

DWDR

–

–

–

–

–

2MP (1920*1080)

Ultra 265, H.265, H.264, MJPEG

Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps

Support

Supported

Support

Up to 8 OSDs

Up to 8 areas

Up to 8 areas

Up to 4 areas

Intrusion, Cross Line, Motion Detection, Object Removed, Object Left Behind

Face Detection, Defocus, Scene Change

People counting

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

–

NAS(NFS)

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

ONVIF(Profile S, Profile T), API

–

–

–

1 RJ45 10M/100M Base-TX Ethernet

–

DC 12V±25%, PoE (IEEE 802.3af), Max 6.0W

157.3 × 63 × 62.4mm (6.2” × 2.5” × 2.5”)

0.45kg (0.99lb)

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

IP67- 2KV Surge Protection

Supported

CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

–

–

–

–

–
